Leg bench tests (milestone M3)

How to test the first leg, from a motor on the bench to the power cut on the rig, with the numbers the simulation predicts and the pass/fail of each test (docs/leg-prototype-plan.md section 5, tasks T12 and T13). Before anything moves, go through docs/leg-rig-safety.md. The parts: docs/leg-rig-orders.md. The wiring: docs/leg-rig-wiring.md. The build: docs/leg-rig-assembly.md.

Every script prints what it did and writes its results under exports/rig/:

• the bench's results go in exports/rig/bench/ (b1-*.json, b2-motor*.json, c6-jitter-*.json, and the data sheets in sheets/);
• every rig run goes in exports/rig/runs/<date>-<time>-can-<test>.{json,npz,png}, with its verdict against rig/criteria.json.

python -m rig.bench.fit_params turns the bench's results into exports/rig/bench/sim-params.json. That file is what the main session puts back into the simulation (plan flags F1 and F2).

The order

B0, B3 and B4 need only printed parts, so they run while the motors ship. Each test below gives its set-up, its steps, what the simulation assumes or predicts, and how it passes.

What the simulation assumes for each bench test

The predicted numbers for the rig tests

At 14.75 kg carried, 500 Hz with one tick of latency, the pack at its start rule (jumps and drops from 40.5 V, R_int 0.1 ohm), the bumpers meeting the carriage at a leg length of 140 mm (S6: lowered to 74 mm). From python -m rig.run --predict.

Pass and fail for each run (rig/criteria.json)

The run's own log is judged at the end of every run (python -m rig.compare <run.json> again at any time). The last column is the simulation's own run of the same test. A check can stay open in the simulation: "follows the prediction" compares the run with this very prediction, and "measured only" needs the load plate.

Instruments

• The load cell: Phidgets 3140_0, S-type, 500 kg, M12 x 1.75 at both ends. It comes with a calibration certificate. Its own HX711 board plugs into the rig node in place of the load plate's (the 4-pin header on the FeatherWing). The node prints F <newtons> lines on its USB serial at 10 Hz (screen /dev/ttyACM0 115200; typing t re-tares it). The node's firmware and its settings are in rig/firmware/feather_rig/.
  • Zero it with nothing hanging on it.
  • Check the slope with the rig's weight plates, 2 x 1.134 kg + 2 x 0.567 kg = 33.4 N, hung from the lower thread on a wire. The certificate's mV/V sets the slope; the plates only check it within 1 %.
• The dial indicator: 0-25 mm, 0.01 mm, on its magnetic base on a steel plate or the bench's vise. Read it at each step. A phone video of the dial and the serial terminal together keeps both readings.
• Torque tools:
  • a torque screwdriver, 1-6 N m, for the M5s into printed parts;
  • the 2-25 N m wrench for everything else.
  • Step the torque up; never back off and re-tighten within a step.

B0: the fit coupons

Each seat is printed at -0.1, 0 and +0.1 mm on its diameter (exports/rig/bench/coupon_*). Print them in PA6-CF, dried, on the settings the leg will use.

Record the variant that fits each seat. The main session sets the leg's print offsets from that table. If a slip fit is the best there is (a bearing seat), the assembly uses Loctite 641 on it, as docs/leg-rig-assembly.md says.

C1-C6: commissioning, one motor on the bench supply

On the dyno board (exports/rig/bench/dyno_*): each RS-04 on its lug plate on 10 x M4 x 20, at 2.5 N m. The bench supply (Mean Well LRS-600-36, 36 V: the robot's bus, D65) feeds the motor's XT30. Fit the CAN lead and its terminators.

B2: the rotor's inertia (spin-down)

One motor on its lug plate, its output bare (the hub off: its inertia would add), on the bench supply.

1. Run python -m rig.bench.spin_down --iface can0 --id 1. It pushes 2 N m from rest until 0.4 s or 8 rad/s, then coasts. It does this three times and writes b2-motor1.json.
2. The same for motor 2.

Pass:

• J within +-20 % of the simulation's ARMATURE (the table above);
• the three repeats within 5 % of each other.

Outside +-20 %, the main session sets ARMATURE from it (F1). The landing predictions move with it, so regenerate them before S3.

B1: the power-off damping (decides D39)

Why. When the power goes, the leg falls. How hard the knees land depends on how much the unpowered motors resist being turned. The RS-04 has a power-off anti-backdrive switch, the damper parameter (0x702A, uint8). 0, the default, means the protection is on. 1 means it is off. The simulation assumes 5.88 N m s/rad when damped.

Set-up. The dyno: both motors output to output through the TPU spider.

• Motor A (id 1) is the one tested.
• Motor B (id 2) drives it in velocity mode, and its own torque reading is the drag.
• B runs on the pack (through the pod's fuse and contactor). At 60 N m x 13 rad/s it can pull more than the 600 W bench supply gives. Start the pair at 40 V or under, and hold the pendant through each sweep: the contactor is closed only while it is held.
• A is either unplugged or on the bench supply, as each condition says.

Steps:

1. Friction first. Take the spider out (B alone) and run python -m rig.bench.backdrive --iface can0 --driver 2 --condition friction. This measures B's own drag.
2. Damper 0, unpowered. Spider in. With A powered: python -m rig.rs04 --id 1 param damper 0, then python -m rig.rs04 --id 1 save, then python -m rig.rs04 --id 1 param damper (it must read 0). Unplug A's XT30 and tape its pins apart: back-driven at 13 rad/s, A makes about 30 V. Run ... --condition unpowered_damper0.
3. Damper 1, unpowered. Power A, set damper 1, save, read it back, unplug, and run ... --condition unpowered_damper1.
4. Powered and stopped. A powered and in reset (python -m rig.rs04 --id 1 stop): ... --condition powered_stopped.
5. Put A back to the default: damper 0, save, read back 0. The robot relies on the default.
6. Run python -m rig.bench.fit_params. B1_backdrive in sim-params.json gets, for each condition, the drag table (rad/s, N m) and its fit c sign(w) + b w.

The sweep runs 0.5, 1, 2, 4, 7, 10 and 13 rad/s each way, settles 1.5 s and averages 1.5 s at each speed. It stops a direction early once the drag passes 60 N m: then the answer is simply "strong".

Cross-check by hand (optional). Hang a 5 kg mass on a 0.3 m arm on A's unpowered output and film the fall. It should fall at about 14.7 N m / b. For the simulation's 5.88 that is 2.5 rad/s.

Decision (the main session, F1). It reruns power_off with the measured curve:

• If the knees stay at or under the fault case (R3 in cad/leg_studies.py, SF 1.0), no spring is needed and D39 stands.
• If not, the options are the knee-to-knee spring, softer and longer-travel bumpers, and a firmware sit-down before any planned power-off.

Which of damper 0 and 1 the robot runs is decided by the same rerun.

B3: the TPU stop sleeve

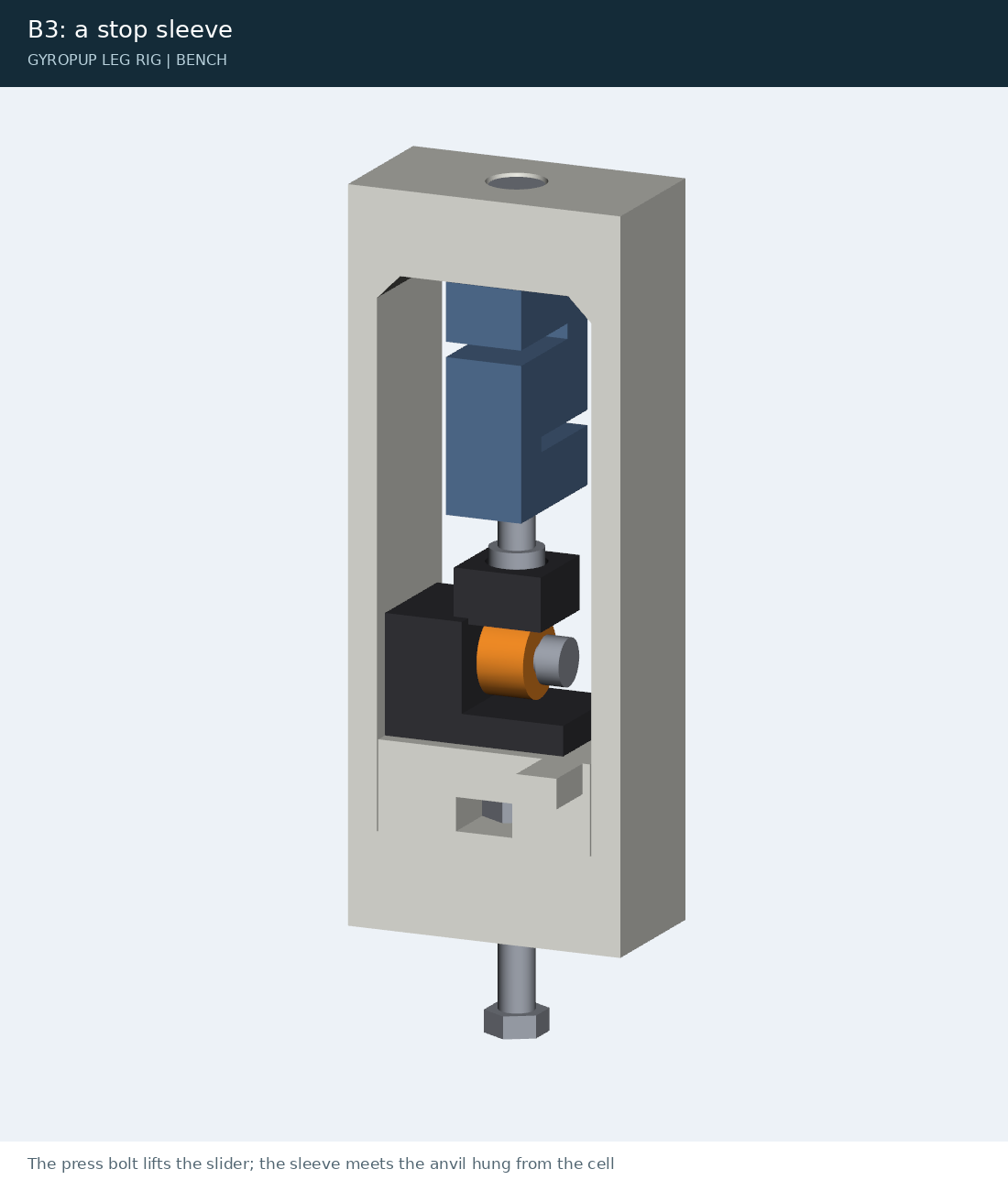

Set-up (the press cage on its side, clamped to the bench):

• The load cell hangs from the top beam on an M12 x 30 at 30 N m.
• The anvil hangs on a second M12 x 30, screwed into the cell's lower thread; its head sits in the anvil's socket.
• A stop post goes in the sleeve block's M8 insert (5 N m), with its TPU sleeve on.
• The block sits on the slider against the left wall.
• The M12 x 80 press bolt comes up through the bottom beam into the press base's nut.
• The dial indicator's tip rests on the slider's tab.

Steps:

1. Zero run, without the sleeve. The anvil sits on the bare post. Load 0-2,000 N in 200 N steps by turning the press bolt, and read the dial at each step. This is the cage's, the cell's and the post's own compliance.
2. Sleeve run. Put the sleeve on. Load 0-2,000 N in 200 N steps, wait 10 s at each, read the force and the dial, and unload in the same steps.
3. Cycles. Cycle to 7 mm (or 2,000 N) ten times. Record cycles 1 and 10 fully.
4. Data. Run python -m rig.bench.fit_params --templates once for blank sheets. Write each step into sheets/b3.csv:
   • cycle;
   • force_n;
   • deflection_mm: the sleeve run less the zero run at the same force.

Pass:

• the measured rate within 0.5-2x the simulation's STOP_K (the table above);
• no tear after 10 cycles;
• a permanent set under 0.3 mm.

F1 updates STOP_K and STOP_TRAVEL from sim-params.json.

B4: heat-set inserts and the screws into printed parts

Set-up:

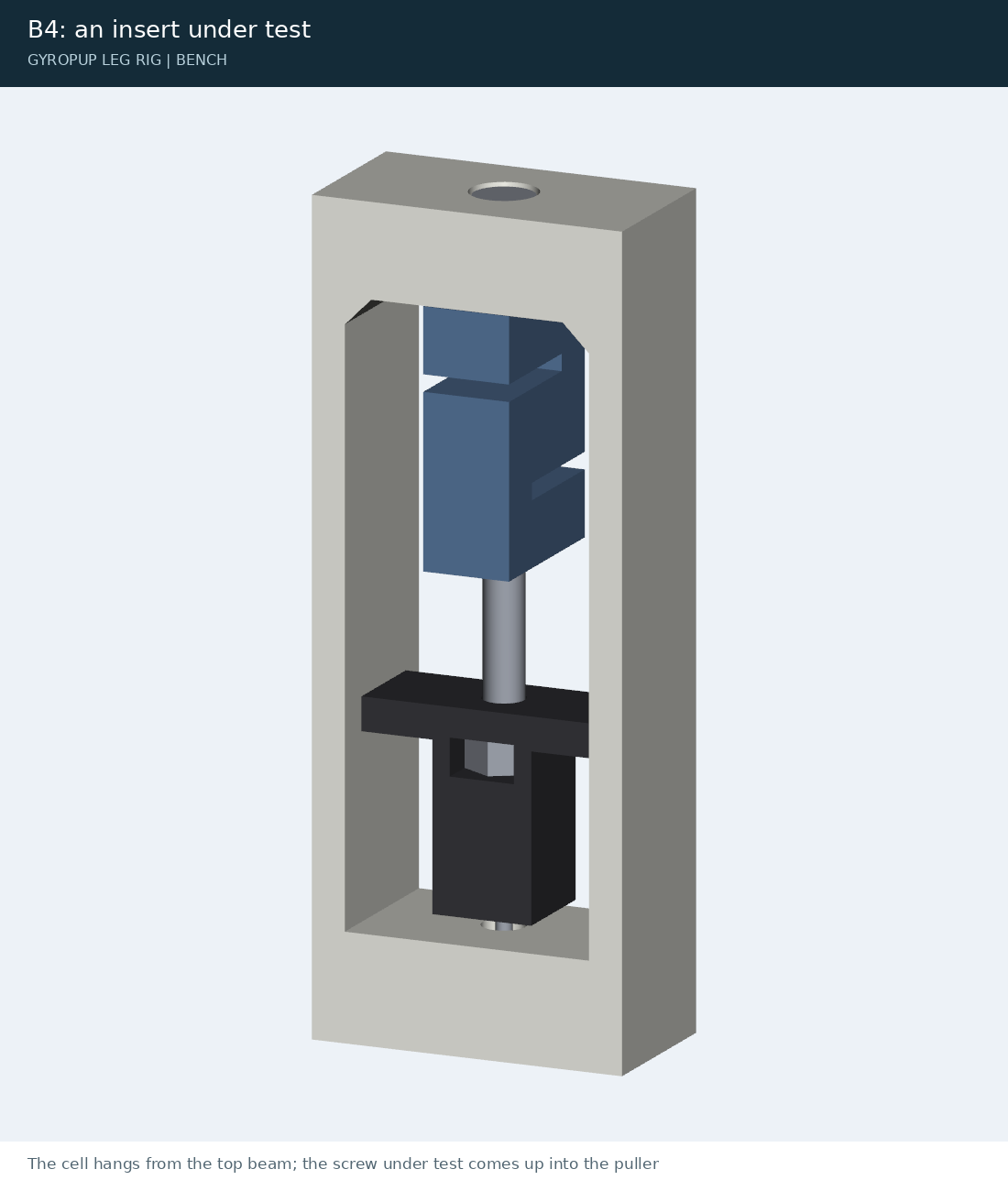

• The cell hangs from the top beam.
• An M12 x 75 stud (80 also fits) from the cell's lower thread carries a puller. The M12 nut goes in the puller's side pocket.
• Screw the puller down the stud until its insert face is 5 mm above the bottom beam.
• The puller's wings bear on the side walls, so the screw's torque never reaches the cell.
• The screw under test comes up from below the bottom beam, into the insert.

Set every insert with the soldering iron at the temperature B0 proved, as in the hip frame.

Write the rows into sheets/b4.csv:

• size (M5, M8);
• sample;
• torque_nm;
• tension_n;
• pullout_n (on its own row, at the end).

fit_params gives the tension per N m, the nut factor, the torque for 1,200 N and the pull-out. Put the torques into the assembly's torque table, which until then uses 1.5 N m for the M5s and 5 N m for the M8s. Send the measured preload to the main session (F2: cad/leg_studies.py reruns with it).

B6: the packs' resistance

1. Charge both packs.
2. With nothing connected, read the pair (the two packs in series in their docks) at its XT60 lead: V_open.
3. Connect the 10 ohm 25 W resistor across the pair's leads for 1 s (about 4 A; it gets warm). Read the voltage during the pulse: V_loaded. A meter with min/max helps, or a video of the meter.
4. Repeat three times, a minute apart. Write the rows into sheets/b6.csv (v_open, v_loaded, r_load_ohm).

fit_params gives R_int and the start voltage for jumps and drops: 44.5 - 40 A x R_int. Pass --r-int to rig/run.py; it refuses a jump or a drop above that voltage.

Cross-check after S3. The jump's push draws about 45 A for 0.3 s. Its sag in the run's VBUS log, divided by that current, gives R_int at the real load.

R0: calibrating the bumpers

This is the rig without the leg: the carriage with ballast to about 10 kg (weigh it).

1. Hang the carriage on the drop pin at three heights above bumper contact and pull the pin each time. Film at 240 fps against the tape on the post.

   Energy	Drop height
   7 J	70 mm
   15 J	150 mm
   33 J	335 mm: a hard fault at the jump's apex

2. Read the crush from the video: the lowest point less the contact height.

Pass:

• under 20 mm of crush at 15 J and under 25 mm at 33 J;
• no sharp stop in the video (bottoming);
• no crack in the bumper or its base.

The bumpers are printed at 30 % gyroid. If they bottom, print the 40 % pair. If 7 J barely marks them, 30 % is right and stays.

C7 and S1: the leg's first stand

1. C7. Hang the carriage on the drop pin at 150 mm with the leg in the air. Run python -m rig.run --backend can --test drop_150 --rate-limit 5 without pulling the pin. The leg rises to 300 mm and holds. Then check the angles against a ruler with python -m rig.calibrate --check: the leg length within 5 mm.
2. S1. The carriage is on its bumpers and the load plate is under the wheel. Run python -m rig.run --backend can --test stand_up. The first time, add --rate-limit 5.

B5: the tyre, on the rig

Set-up:

• The leg stands at 360 mm on the load plate.
• Lower the top stop onto the carriage's top edge there, so the carriage cannot rise.
• The dial indicator's base goes on the load plate, its tip on the wheel link's hub.

Steps:

1. Run python -m rig.run --backend can --test tyre_press. It stands up to 360 mm, then presses the wheel into the plate at 200, 300 ... 900 N and back down to 200 N, 4 s per step.
   • Near full stretch the motors' 60 N m reaches about 940 N.
   • If the carriage is not held, the leg stretches and the run goes limp at once.
2. Read the dial at each step. Take the force from the run's load plate.
3. Do this three times, turning the wheel 120 degrees by hand between runs. Let the motors cool 2 min.
4. Write the rows into sheets/b5.csv: spot, direction (load or unload), force_n, deflection_mm.

Pass:

• a rate and a hysteresis come out of it;
• the load plate follows the command within 15 % (the run's own verdict).

If the rate is under 100 N/mm, the main session regenerates the drop's and the jump's predictions before S3 and S4 (F1).

S2-S6

Each is one command. The tables above give its predicted numbers and its pass/fail.

The packs. Jumps and drops start at or under the start voltage (B6). The runner reads the motors' VBUS before it arms and refuses above it.

After every run

• Read the verdict the runner prints.
• Look at the overlay PNG next to the run's log: the run, the prediction and the limits.
• Before the next run: the motors' temperatures (in the log) under 60 C; the screws' paint marks unbroken; nothing on the bumpers.
• Anything off-limits stops the series. Write down what happened in exports/rig/runs/notes.md, under the run's file name.
